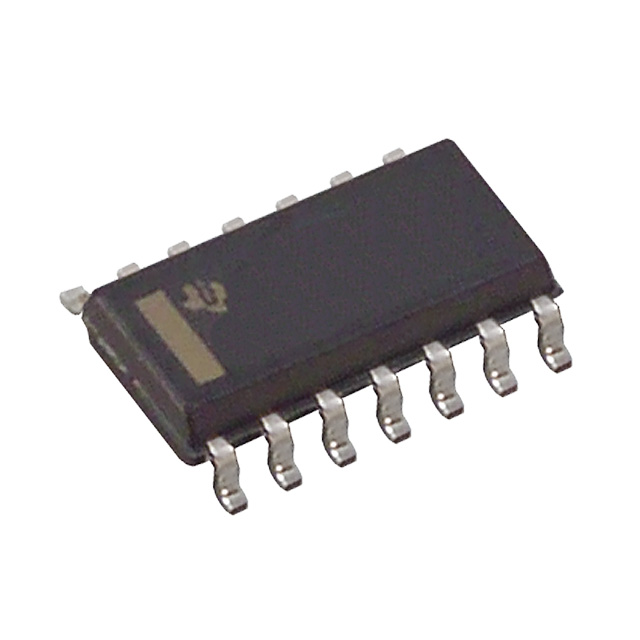

LM348D

Производитель:

Texas Instruments

Купить

форма запроса

Описание:

IC OPAMP GP 1MHZ QUAD 14SOIC

Категория:

Integrated Circuits (ICs)

Корпус:

3.9mm

Год:

Datasheet (Техническое описание) LM348D

Поиск в бесплатном архиве даташитов datasheet.su

Посмотреть все характеристики

Technical/Catalog Information	LM348D
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Slew Rate	0.5 V/??s
Gain Bandwidth Product	1MHz
Current - Supply	2.4mA
Current - Output / Channel	25mA
Voltage - Supply, Single/Dual (±)	8 V ~ 36 V, ±4 V ~ 18 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	30nA
Operating Temperature	0°C ~ 70°C
Voltage - Input Offset	1000??V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM348D LM348D 296 9552 5 ND 29695525ND 296-9552-5
