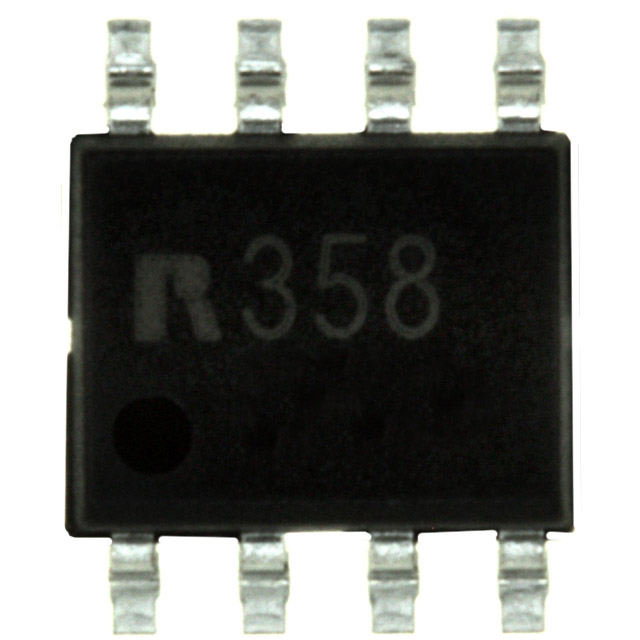

LM358WDT

Производитель:

Rohm Semiconductor(VA)

Купить

форма запроса

Описание:

IC OPAMP DUAL 32V 8-SOIC

Категория:

Integrated Circuits (ICs)

Корпус:

3.9mm

Год:

01+

Datasheet (Техническое описание) LM358WDT

Поиск в бесплатном архиве даташитов datasheet.su

Посмотреть все характеристики

Technical/Catalog Information	LM358WDT
Vendor	Rohm Semiconductor(VA)
Category	Integrated Circuits (ICs)
Packaging	Digi-Reel?
Amplifier Type	General Purpose
Number of Circuits	2 - Dual
Package / Case	8-SOIC (3.9mm Width)
Slew Rate	0.6 V/??s
Gain Bandwidth Product	1.1MHz
Current - Supply	700??A
Current - Output / Channel	20mA
Voltage - Supply, Single/Dual (±)	3 V ~ 32 V, ±1.5 V ~ 16 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	20nA
Operating Temperature	0°C ~ 70°C
Voltage - Input Offset	2000??V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM358WDT LM358WDT LM358WDTDKR ND LM358WDTDKRND LM358WDTDKR
