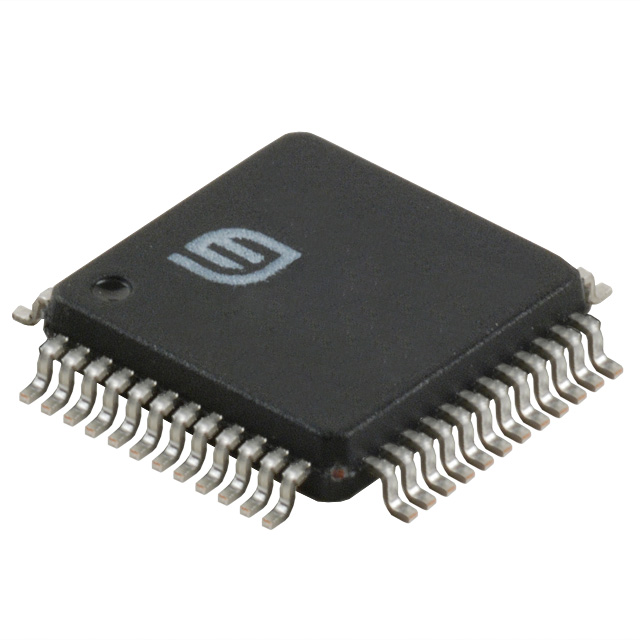

LM3S818-IQN50

LM3S818-IQN50



Производитель:

Luminary Micro
Описание:
 IC ARM CORTEX MCU 64K 48-LQFP
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) LM3S818-IQN50

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationLM3S818-IQN50
VendorLuminary Micro
CategoryIntegrated Circuits (ICs)
Program Memory Size64K x 8
RAM Size8K x 8
Number of I /O30
Package / Case48-LQFP
Speed50MHz
Controller Series800
Oscillator TypeInternal
PackagingTray
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorARM? Cortex-M3?
Data ConvertersA/D 6x10b
Core Size32-Bit
Operating Temperature-40°C ~ 85°C
ConnectivityMicrowire, SPI, SSI, UART/USART
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)3 V ~ 3.6 V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM3S818 IQN50
LM3S818IQN50
726 1022 ND
7261022ND
726-1022
