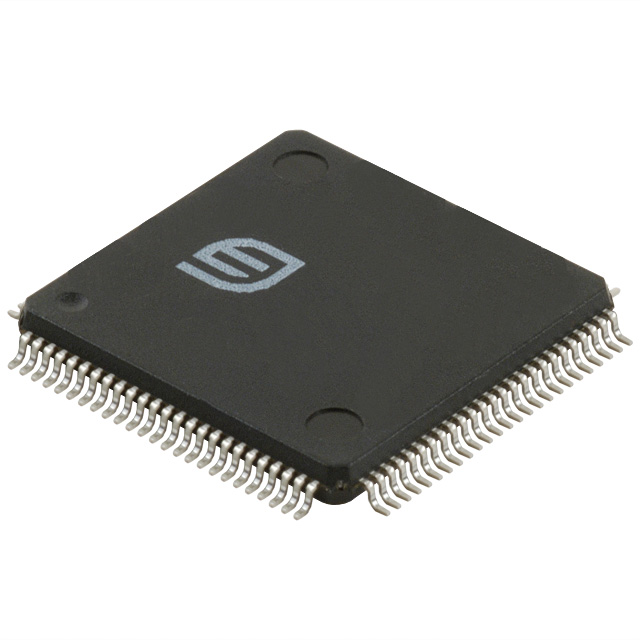

LM3S1439-IQC50

LM3S1439-IQC50



Производитель:

Luminary Micro
Описание:
 IC ARM CORTEX MCU 96K 100-LQFP
Категория:
 Integrated Circuits (ICs)
Корпус:
 7500
Год:
 TI

Datasheet (Техническое описание) LM3S1439-IQC50

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationLM3S1439-IQC50
VendorLuminary Micro
CategoryIntegrated Circuits (ICs)
Program Memory Size96K x 8
RAM Size32K x 8
Number of I /O52
Package / Case100-LQFP
Speed50MHz
Controller Series1000
Oscillator TypeInternal
PackagingTray
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorARM? Cortex-M3?
Data ConvertersA/D 4x10b
Core Size32-Bit
Operating Temperature-40°C ~ 85°C
ConnectivityI²C, IrDA, Microwire, SPI, SSI, UART/USART
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)2.25 V ~ 2.75 V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM3S1439 IQC50
LM3S1439IQC50
726 1102 ND
7261102ND
726-1102
