| Technical/Catalog Information | BTA204S-600B,118 |
| Vendor | NXP Semiconductors (VA) |
| Category | Discrete Semiconductor Products |
| Triac Type | Standard |
| Configuration | Single |
| Voltage - Off State | 600V |
| Current - On State (It (RMS) (Max) | 4A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
| Current - Gate Trigger (Igt) (Max) | 50mA |
| Current - Hold (Ih) (Max) | 30mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25A, 27A |
| Mounting Type | Surface Mount |

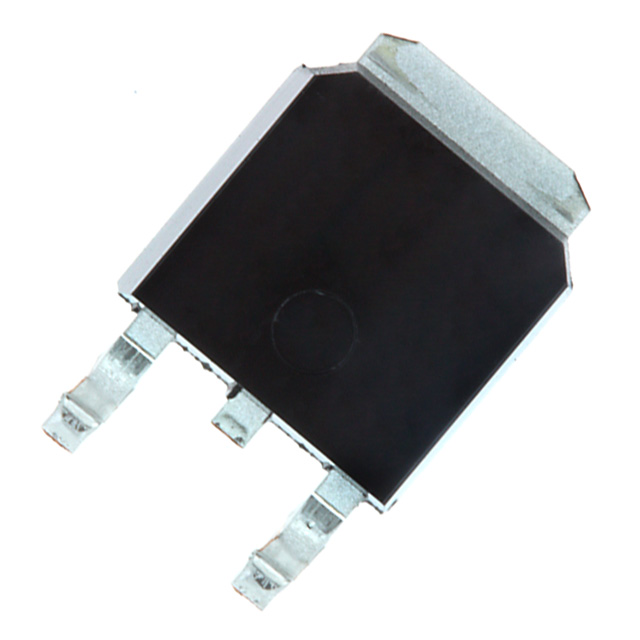

| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| Packaging | Digi-Reel? |
| Drawing Number | 568; SOT428; ; 3 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BTA204S 600B,118
BTA204S600B,118
568 3696 6 ND
56836966ND
568-3696-6
|
