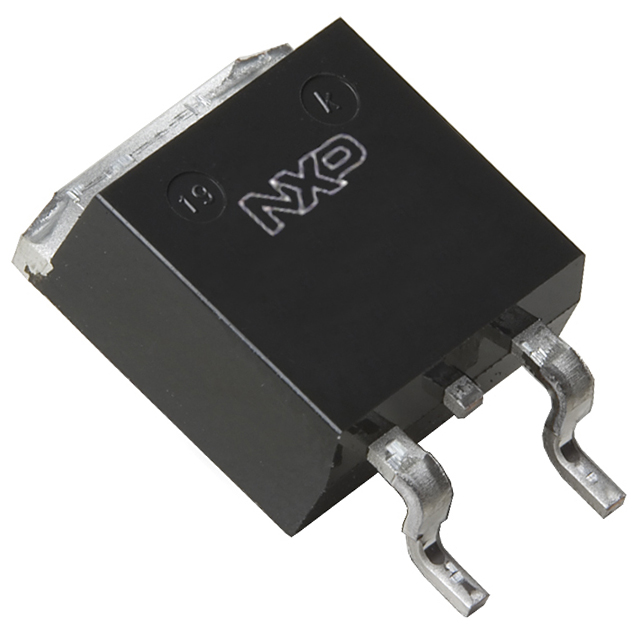

| Technical/Catalog Information | BTA216B-600B,118 |
| Vendor | NXP Semiconductors (VA) |
| Category | Discrete Semiconductor Products |
| Triac Type | Standard |
| Configuration | Single |
| Voltage - Off State | 600V |
| Current - On State (It (RMS) (Max) | 16A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
| Current - Gate Trigger (Igt) (Max) | 50mA |
| Current - Hold (Ih) (Max) | 60mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 140A, 150A |
| Mounting Type | Surface Mount |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| Packaging | Digi-Reel? |
| Drawing Number | 568; SOT404; ; |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BTA216B 600B,118
BTA216B600B,118
568 3736 6 ND
56837366ND
568-3736-6
|
