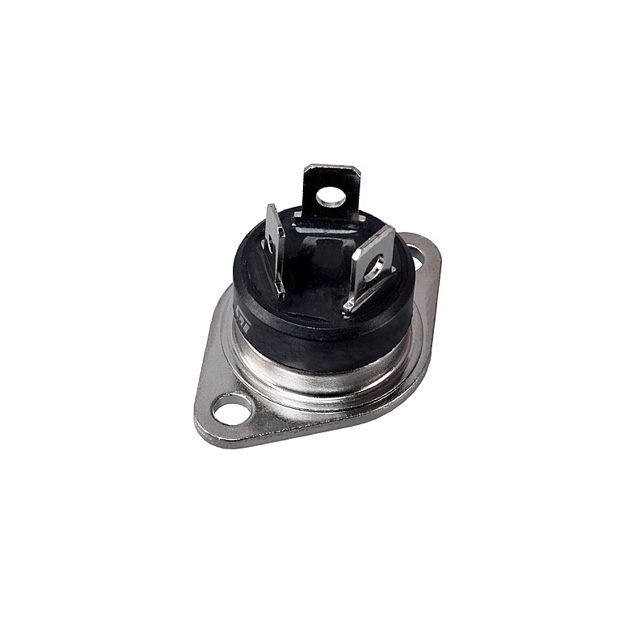

BTW67-600

BTW67-600



Производитель:

STMicroelectronics
Описание:
 IC SCR 50A 600V RD91
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 01+

Datasheet (Техническое описание) BTW67-600

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationBTW67-600
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
SCR TypeStandard Recovery
Voltage - Off State600V
Current - On State (It (RMS)) (Max)50A
Current - On State (It (AV)) (Max)32A
Current - Gate Trigger Current (Igt) (Max)80mA
Current - Hold (Ih) (Max)150mA
Current - Non Rep. Surge 50/60Hz (Itsm)580A, 610A
Voltage - Gate Trigger (Vgt) (Max)1.3V
Mounting TypeChassis Mount
Package / CaseRD-91
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BTW67 600
BTW67600
497 6679 ND
4976679ND
497-6679
