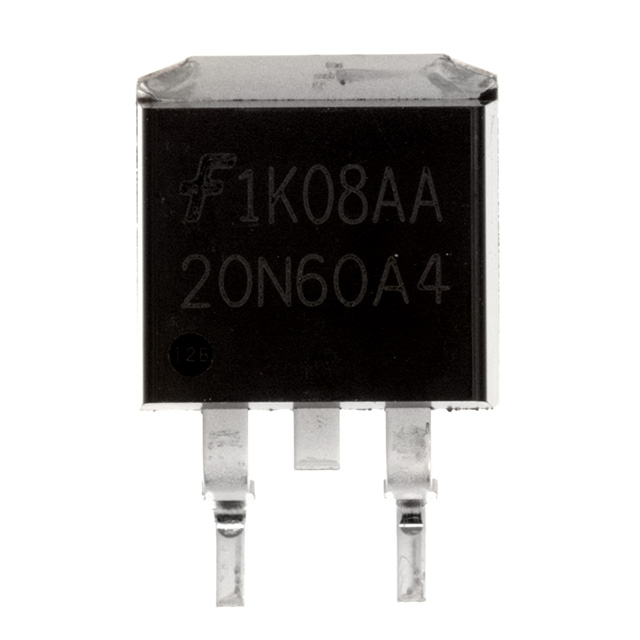

HGT1S20N60A4S9A

HGT1S20N60A4S9A



Производитель:

Fairchild Semiconductor
Описание:
 IGBT SMPS N-CHAN 600V TO-263AB
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 FAIRCHILD

Datasheet (Техническое описание) HGT1S20N60A4S9A

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationHGT1S20N60A4S9A
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)70A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 20A
Power - Max290W
Mounting TypeSurface Mount
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names HGT1S20N60A4S9A
HGT1S20N60A4S9A
