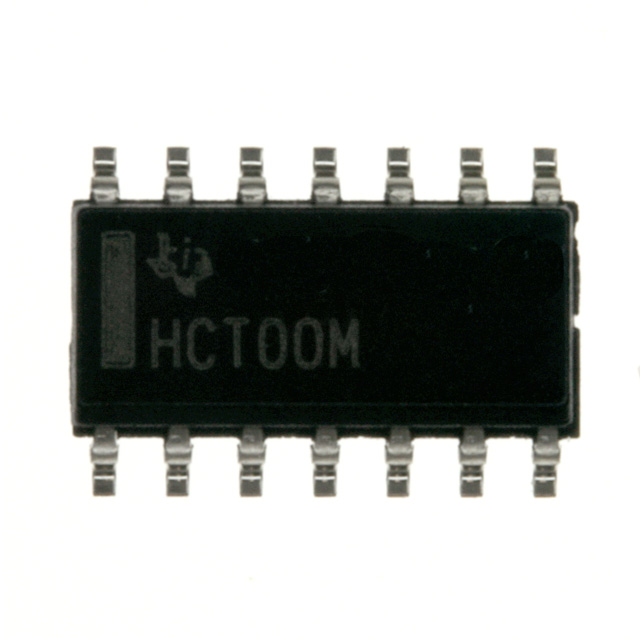

CD74HCT00M

CD74HCT00M



Производитель:

Texas Instruments
Описание:
 IC QUAD 2-IN NAND GATE 14-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 93/P3

Datasheet (Техническое описание) CD74HCT00M

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationCD74HCT00M
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeNAND Gate
PackagingTube
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low5.2mA, 5.2mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CD74HCT00M
CD74HCT00M
296 9244 5 ND
29692445ND
296-9244-5
