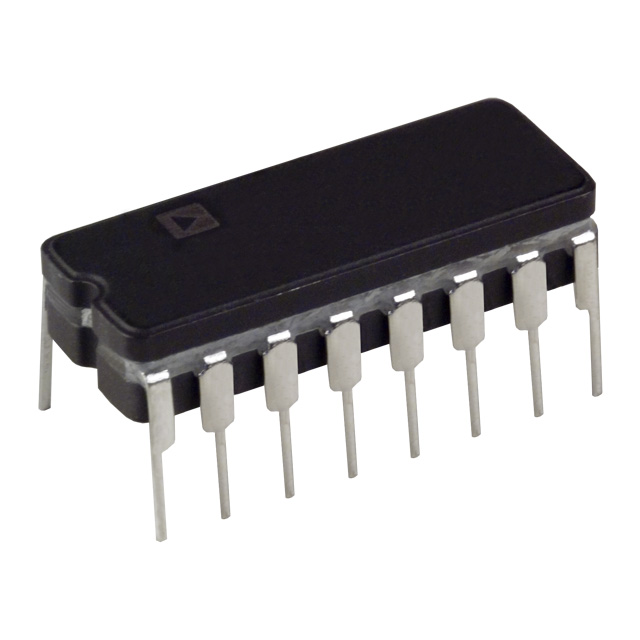

ADG509ABQ

ADG509ABQ



Производитель:

Analog Devices Inc
Описание:
 IC MUX ANALOG DUAL 4CH 16CDIP
Категория:
 Integrated Circuits (ICs)
Корпус:
 CDIP
Год:
 96+

Datasheet (Техническое описание) ADG509ABQ

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationADG509ABQ
VendorAnalog Devices Inc
CategoryIntegrated Circuits (ICs)
TypeMultiplexer
Voltage Supply SourceDual Supply
Voltage - Supply, Single/Dual (±)±10.8 V ~ 16.5 V
Circuit2 x 4:1
On-State Resistance300 Ohm
Mounting TypeThrough Hole
Package / Case16-CDIP (300 mil)
Packaging-
Current - Supply20??A
Operating Temperature-40°C ~ 85°C
FunctionMultiplexer
Drawing Number*
RoHS StatusRoHS Non-Compliant
Other Names ADG509ABQ
ADG509ABQ
