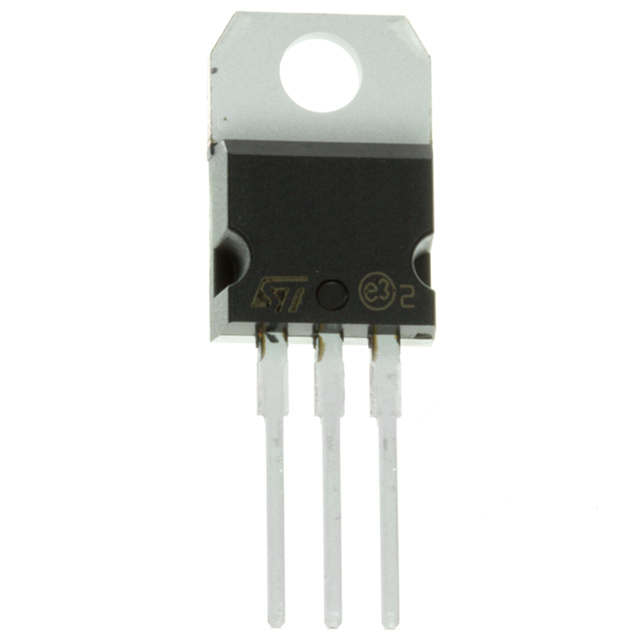

TIP120

Производитель:

STMicroelectronics

Купить

форма запроса

Описание:

TRANS NPN DARL 60V 5A TO-220

Категория:

Discrete Semiconductor Products

Корпус:

Год:

06+

Technical/Catalog Information	TIP120
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN - Darlington
Voltage - Collector Emitter Breakdown (Max)	60V
Current - Collector (Ic) (Max)	5A
Power - Max	65W
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 1A, 4V
Vce Saturation (Max) @ Ib, Ic	2V @ 12mA, 3A
Frequency - Transition	-
Current - Collector Cutoff (Max)	500??A
Mounting Type	Through Hole
Package / Case	TO-220-3 (Straight Leads)
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TIP120 TIP120 497 2539 5 ND 49725395ND 497-2539-5
