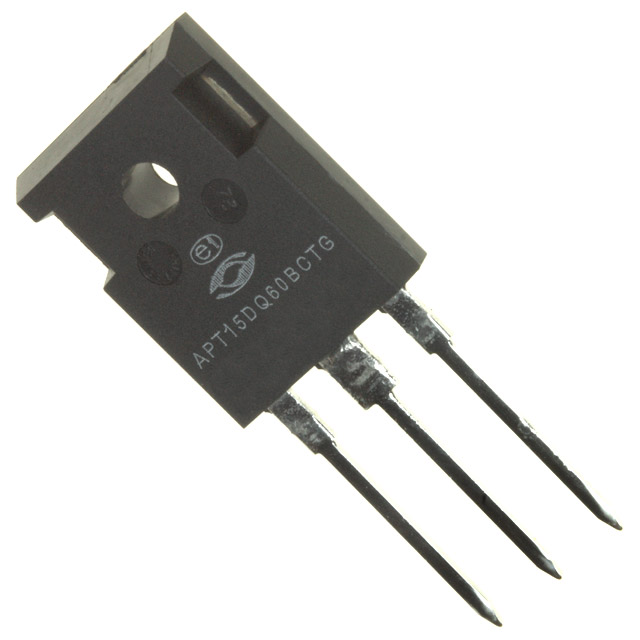

APT15DQ60BCTG

APT15DQ60BCTG



Производитель:

Microsemi-PPG
Описание:
 DIODE ULT FAST 2X15A 600V TO-247
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-247 [B]
Год:
 `06+(pb-free)

Datasheet (Техническое описание) APT15DQ60BCTG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT15DQ60BCTG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)600V
Current - Average Rectified (Io) (per Diode)15A
Voltage - Forward (Vf) (Max) @ If2.4V @ 15A
Current - Reverse Leakage @ Vr25??A @ 600V
Reverse Recovery Time (trr)19ns
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeThrough Hole, Radial
Package / CaseTO-247
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT15DQ60BCTG
APT15DQ60BCTG
APT15DQ60BCTGMI ND
APT15DQ60BCTGMIND
APT15DQ60BCTGMI
