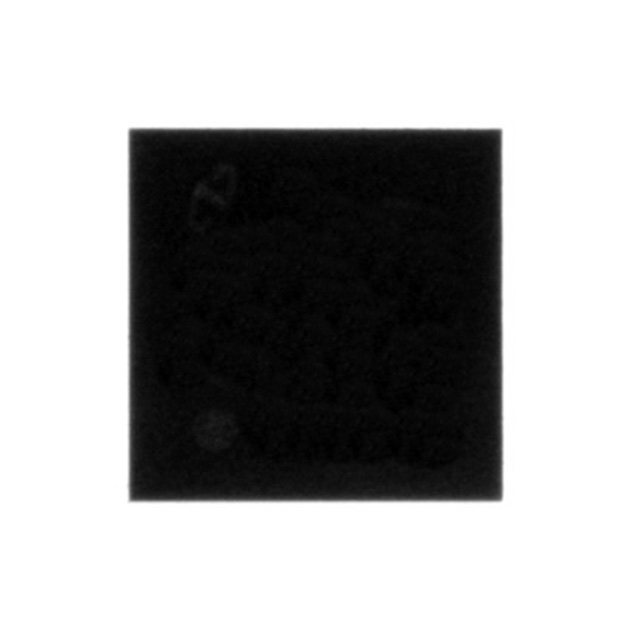

LM5109SD

LM5109SD



Производитель:

National Semiconductor (VA)
Описание:
 IC DVR HALF-BRIDGE 100V 1A 8LLP
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) LM5109SD

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationLM5109SD
VendorNational Semiconductor (VA)
CategoryIntegrated Circuits (ICs)
ConfigurationHalf Bridge
Voltage - Supply8 V ~ 14 V
Current - Peak1A
Delay Time29ns
Package / Case8-LLP
PackagingCut Tape (CT)
Number of Outputs2
Input TypeNon-Inverting
Number of Configurations1
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)118V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names LM5109SD
LM5109SD
LM5109SDCT ND
LM5109SDCTND
LM5109SDCT
