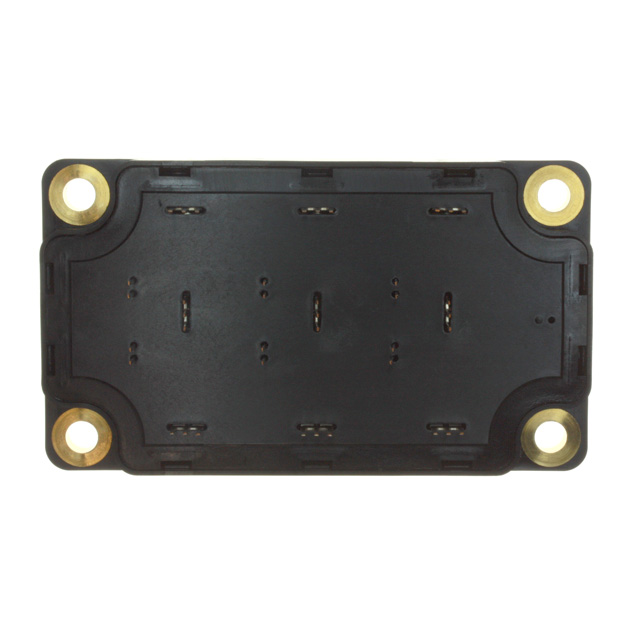

APTGT75TDU120PG

APTGT75TDU120PG



Производитель:

Microsemi-PPG
Описание:
 IGBT MOD TRPL DUAL SOURCE SP6-P
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) APTGT75TDU120PG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPTGT75TDU120PG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Configuration*
InputStandard
Voltage - Collector Emitter Breakdown (Max)1200V
Current - Collector (Ic) (Max)100A
Power - Max350W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Current - Collector Cutoff (Max)250??A
NTC ThermistorNo
Input Capacitance (Cies) @ Vce5.34nF @ 25V
Mounting TypeChassis Mount
Package / CaseSP6
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APTGT75TDU120PG
APTGT75TDU120PG
