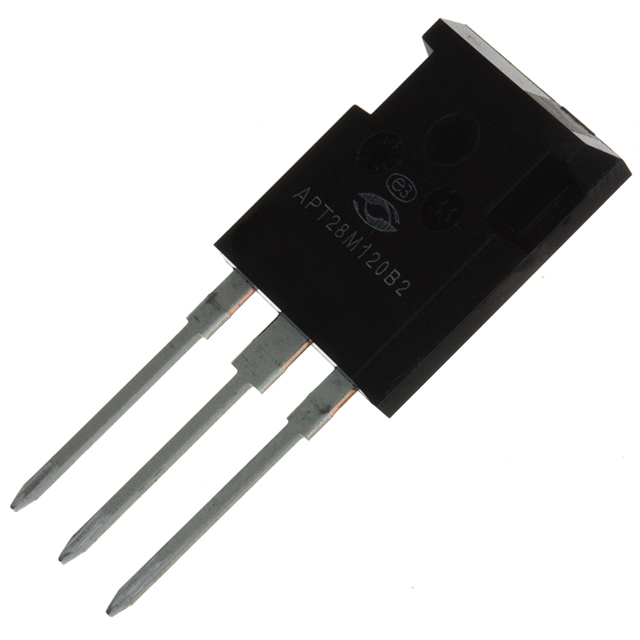

APT28M120B2

APT28M120B2



Производитель:

Microsemi-PPG
Описание:
 MOSFET N-CH 1200V 28A T-MAX
Категория:
 Discrete Semiconductor Products
Корпус:
 T-MAX?[B2]
Год:
 `06+(pb-free)

Datasheet (Техническое описание) APT28M120B2

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT28M120B2
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25° C28A
Rds On (Max) @ Id, Vgs560 mOhm @ 14A, 10V
Input Capacitance (Ciss) @ Vds 9670pF @ 25V
Power - Max1135W
PackagingTube
Gate Charge (Qg) @ Vgs300nC @ 10V
Package / CaseT-MAX
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT28M120B2
APT28M120B2
APT28M120B2MI ND
APT28M120B2MIND
APT28M120B2MI
