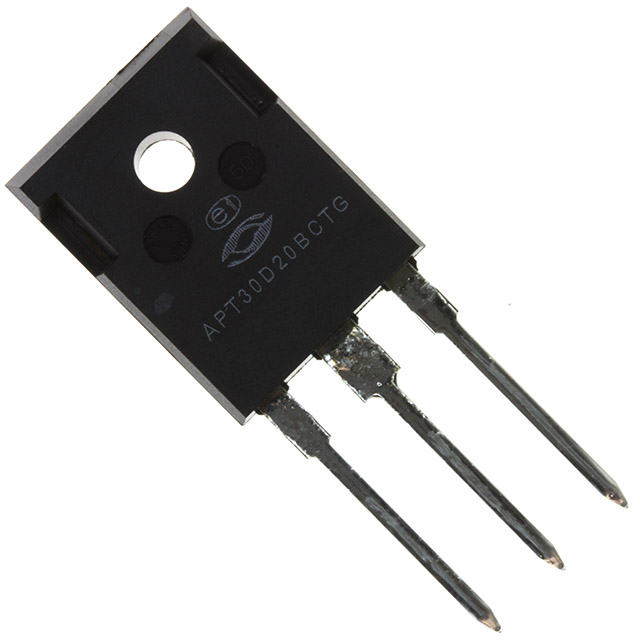

APT30D20BCTG

APT30D20BCTG



Производитель:

Microsemi-PPG
Описание:
 DIODE ULT FAST 2X30A 200V TO-247
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-247 [B]
Год:
 `06+(pb-free)

Datasheet (Техническое описание) APT30D20BCTG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT30D20BCTG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io) (per Diode)30A
Voltage - Forward (Vf) (Max) @ If1.3V @ 30A
Current - Reverse Leakage @ Vr250??A @ 200V
Reverse Recovery Time (trr)24ns
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeThrough Hole, Radial
Package / CaseTO-247
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT30D20BCTG
APT30D20BCTG
APT30D20BCTGMI ND
APT30D20BCTGMIND
APT30D20BCTGMI
