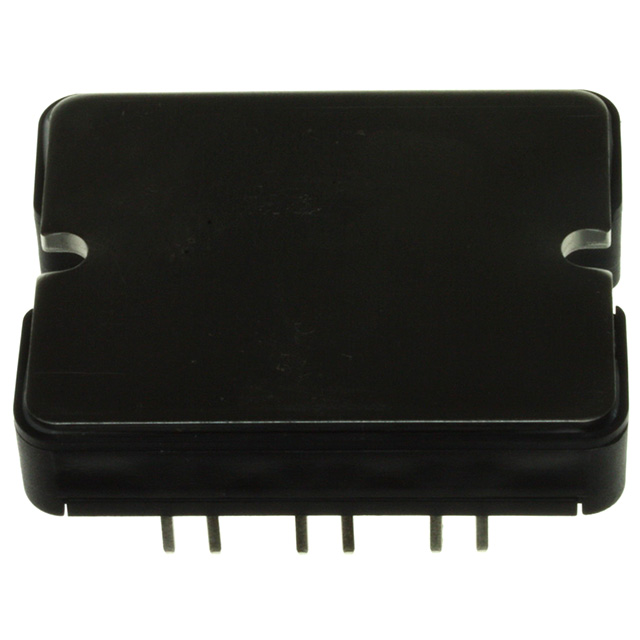

APTGT50TL601G

APTGT50TL601G



Производитель:

Microsemi-PPG
Описание:
 POWER MODULE IGBT 600V 50A SP1
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) APTGT50TL601G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPTGT50TL601G
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Configuration*
InputStandard
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)80A
Power - Max176W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 50A
Current - Collector Cutoff (Max)250??A
NTC ThermistorNo
Input Capacitance (Cies) @ Vce3.15nF @ 25V
Mounting TypeChassis Mount
Package / CaseSP1 Module
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APTGT50TL601G
APTGT50TL601G
APTGT50TL601GMI ND
APTGT50TL601GMIND
APTGT50TL601GMI
