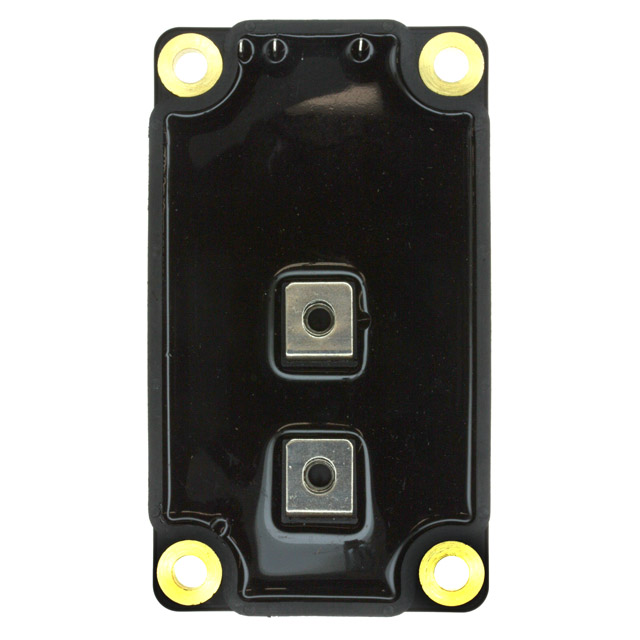

APTM100UM45FAG

APTM100UM45FAG



Производитель:

Microsemi-PPG
Описание:
 MOSFET N-CH 1000V 215A SP6
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) APTM100UM45FAG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPTM100UM45FAG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Mounting TypeChassis Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)1000V (1kV)
Current - Continuous Drain (Id) @ 25° C215A
Rds On (Max) @ Id, Vgs52 mOhm @ 107.5A, 10V
Input Capacitance (Ciss) @ Vds 42700pF @ 25V
Power - Max5000W
PackagingBulk
Gate Charge (Qg) @ Vgs1602nC @ 10V
Package / CaseSP6
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APTM100UM45FAG
APTM100UM45FAG
APTM100UM45FAGMI ND
APTM100UM45FAGMIND
APTM100UM45FAGMI
