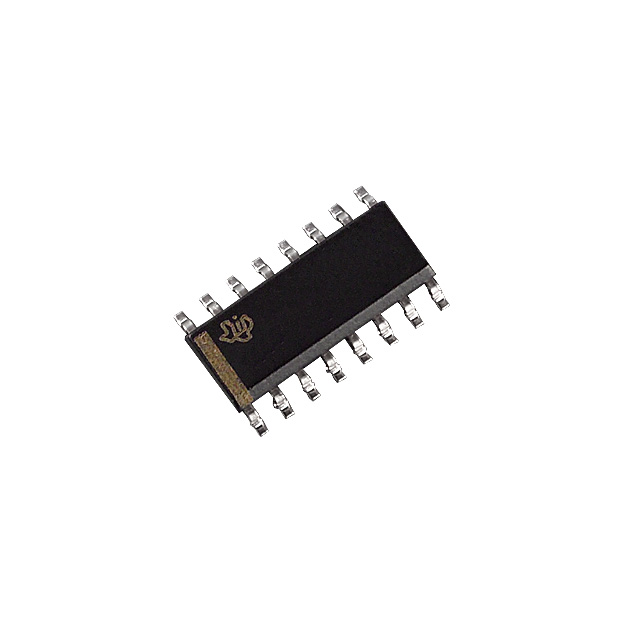

TL594CDR

TL594CDR



Производитель:

Texas Instruments (VA)
Описание:
 IC PWM CONTROL CIRCUIT 16-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 3.9mm
Год:
 04+

Datasheet (Техническое описание) TL594CDR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL594CDR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs2
Package / Case16-SOIC (3.9mm Width)
PackagingDigi-Reel?
Duty Cycle45%
Voltage - Supply7 V ~ 41 V
Frequency-Max300kHz
BuckNo
BoostYes
FlybackYes
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number296; 4040047-4; D; 16
Operating Temperature0°C ~ 70°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL594CDR
TL594CDR
296 15012 6 ND
296150126ND
296-15012-6
