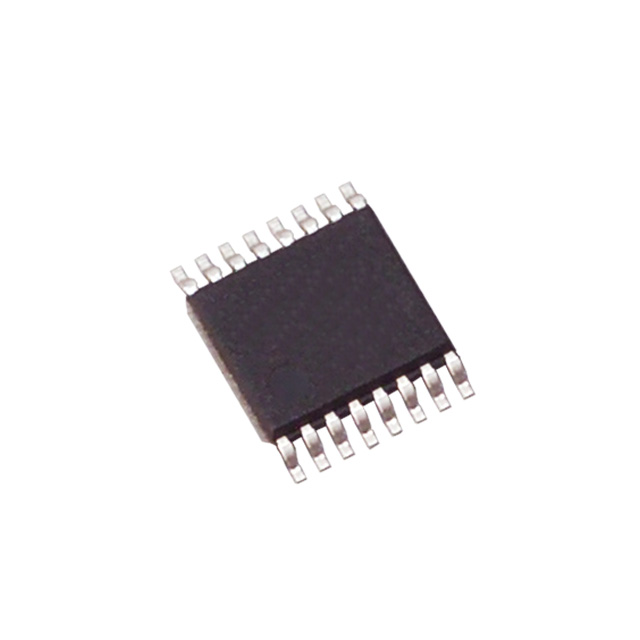

TL594IPWR

TL594IPWR



Производитель:

Texas Instruments (VA)
Описание:
 IC PWM CONTROLLER 16-TSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 2000+

Datasheet (Техническое описание) TL594IPWR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL594IPWR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs2
Package / Case16-TSSOP
PackagingCut Tape (CT)
Duty Cycle45%
Voltage - Supply7 V ~ 41 V
Frequency-Max300kHz
BuckNo
BoostYes
FlybackYes
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number296; 4040064; PW; 8, 14, 16, 20, 24, 28
Operating Temperature-40°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL594IPWR
TL594IPWR
296 10224 1 ND
296102241ND
296-10224-1
