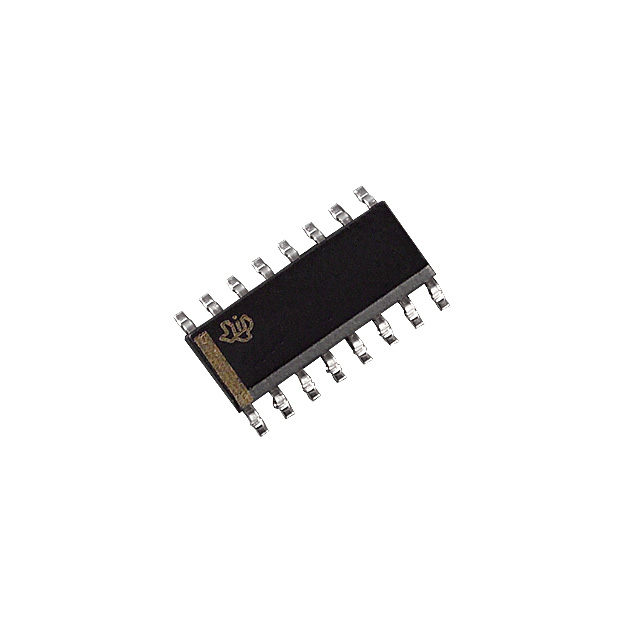

TL598CD

TL598CD



Производитель:

Texas Instruments
Описание:
 IC PWM CONTROLLER 16-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP/3.9/16P
Год:
 02+

Datasheet (Техническое описание) TL598CD

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL598CD
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs2
Package / Case16-SOIC (3.9mm Width)
PackagingTube
Duty Cycle45%
Voltage - Supply7 V ~ 41 V
Frequency-Max300kHz
BuckYes
BoostNo
FlybackNo
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number296; 4040047-4; D; 16
Operating Temperature0°C ~ 70°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL598CD
TL598CD
296 10225 5 ND
296102255ND
296-10225-5
