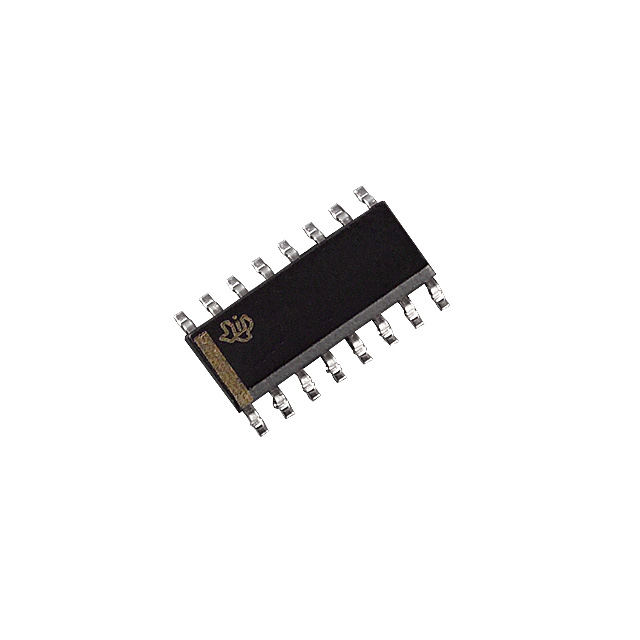

TL52055DR

TL52055DR



Производитель:

Texas Instruments (VA)
Описание:
 IC VIDEO SWITCH TRPL SPDT 16SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 05+

Datasheet (Техническое описание) TL52055DR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL52055DR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
TypeVideo Switch
Voltage Supply SourceSingle Supply
Voltage - Supply, Single/Dual (±)4.5 V ~ 9 V
Circuit3 x SPDT
On-State Resistance1 Ohm
Mounting TypeSurface Mount
Package / Case16-SOIC
PackagingDigi-Reel?
Current - Supply-
Operating Temperature-40°C ~ 85°C
FunctionVideo Switch
Drawing Number296; 4040047-4; D; 16
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL52055DR
TL52055DR
296 18888 6 ND
296188886ND
296-18888-6
