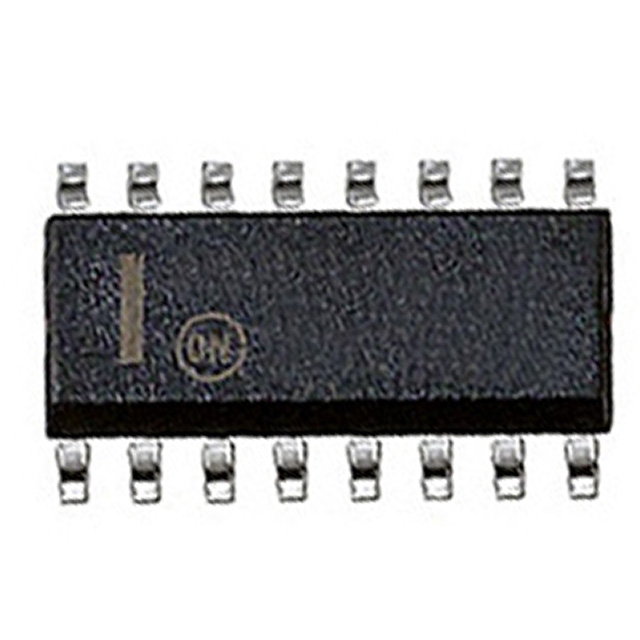

TL594CDG

TL594CDG



Производитель:

ON Semiconductor
Описание:
 IC PWM CTRLR SWITCHMODE 16-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SMD
Год:
 6

Datasheet (Техническое описание) TL594CDG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL594CDG
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs1
Package / Case16-SOIC (3.9mm Width)
PackagingTube
Duty Cycle50%
Voltage - Supply7 V ~ 42 V
Frequency-Max300kHz
BuckYes
BoostNo
FlybackNo
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number*
Operating Temperature-40°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL594CDG
TL594CDG
