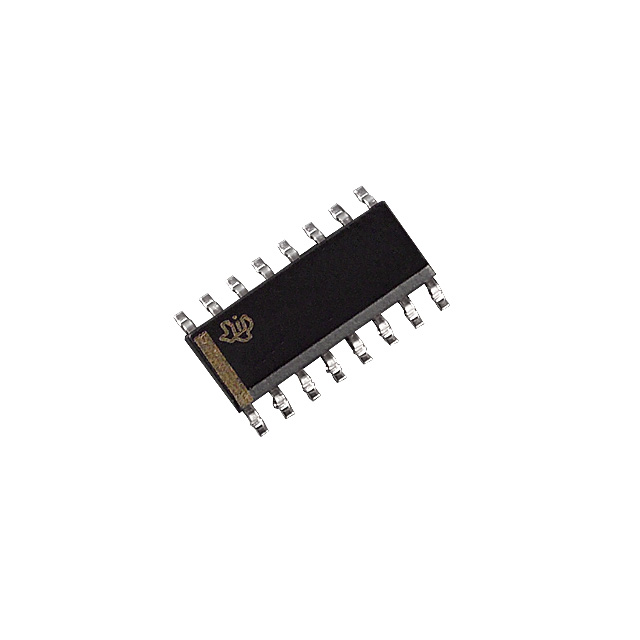

TL594IDR

TL594IDR



Производитель:

Texas Instruments
Описание:
 IC PWM CONTROL CIRCUIT 16-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SMD
Год:
 O9+

Datasheet (Техническое описание) TL594IDR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL594IDR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs2
Package / Case16-SOIC (3.9mm Width)
PackagingTape & Reel (TR)
Duty Cycle45%
Voltage - Supply7 V ~ 41 V
Frequency-Max300kHz
BuckNo
BoostYes
FlybackYes
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number296; 4040047-4; D; 16
Operating Temperature-40°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL594IDR
TL594IDR
