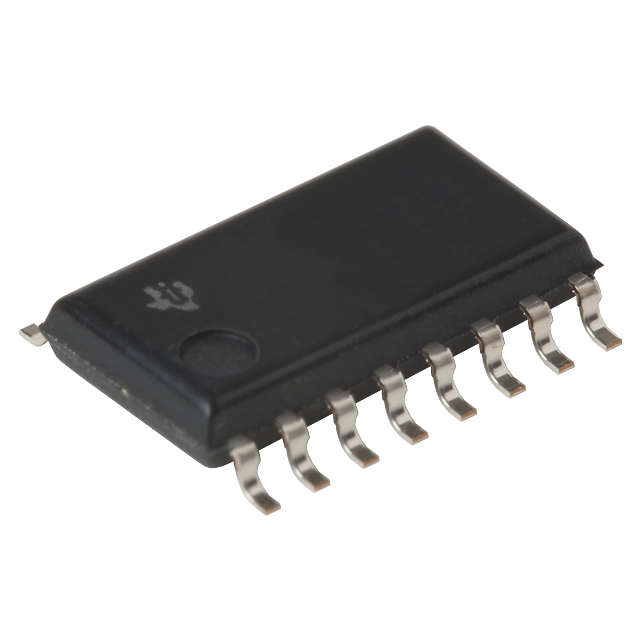

TL594INSR

TL594INSR



Производитель:

Texas Instruments (VA)
Описание:
 IC PWM CONTROL CIRCUIT 16-SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOIC-16
Год:
 44

Datasheet (Техническое описание) TL594INSR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTL594INSR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs2
Package / Case16-SOIC (5.3mm Width), 16-SO, 16-SOEIIJ
PackagingDigi-Reel?
Duty Cycle45%
Voltage - Supply7 V ~ 41 V
Frequency-Max300kHz
BuckNo
BoostYes
FlybackYes
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number296; 4040062; NS; 14, 16, 20, 24
Operating Temperature-40°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TL594INSR
TL594INSR
296 13355 6 ND
296133556ND
296-13355-6
