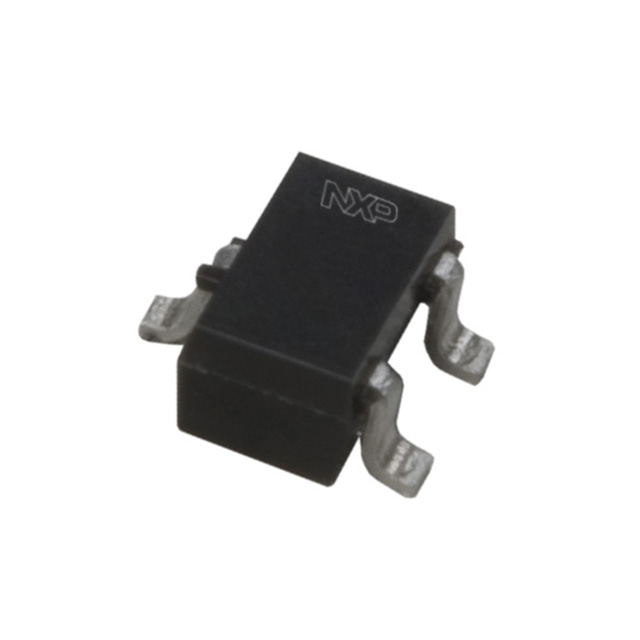

PDTA144WU,115

PDTA144WU,115



Производитель:

NXP Semiconductors
Описание:
 TRANS PNP 50V 100MA SOT323
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) PDTA144WU,115

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPDTA144WU,115
VendorNXP Semiconductors
CategoryDiscrete Semiconductor Products
Transistor TypePNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max200mW
Resistor - Base (R1) (Ohms)47K
Resistor - Emitter Base (R2) (Ohms)22K
Vce Saturation (Max) @ Ib, Ic150mV @ 500??A, 10mA
Current - Collector Cutoff (Max)1??A
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 5V
Frequency - Transition-
Mounting TypeSurface Mount
Package / CaseSC-70-3, SOT-323-3
PackagingTape & Reel (TR)
Drawing Number568; SOT323; ; 3
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PDTA144WU,115
PDTA144WU,115
