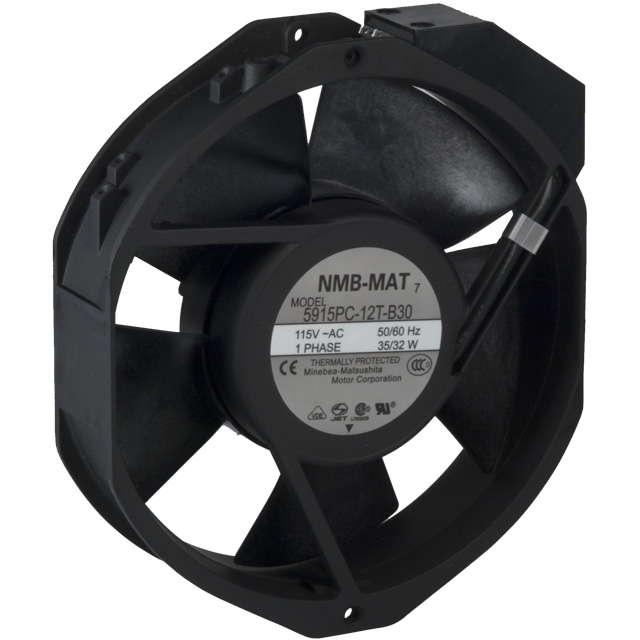

5915PC-12T-B30-A00

5915PC-12T-B30-A00



Производитель:

NMB Technologies Corporation
Описание:
 FAN AXAL 115V 150X172X38 3200RPM
Категория:
 Fans, Thermal Management
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 5915PC-12T-B30-A00

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information5915PC-12T-B30-A00
VendorNMB Technologies Corporation
CategoryFans, Thermal Management
Air Flow212.0 CFM (6.00m³/min)
Bearing TypeBall
Fan TypeTubeaxial
Noise56 dB
Power (Watts)32W
Size / DimensionRectangular - 150mm L x 172mm H x 38mm W
Static Pressure0.865 in H2O (215.6 Pa)
Termination2 Terminals
Voltage Rating115VAC
RPM3200 RPM
Weight1.76 lbs (800.00g)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 5915PC 12T B30 A00
5915PC12TB30A00
P12899 ND
P12899ND
P12899
