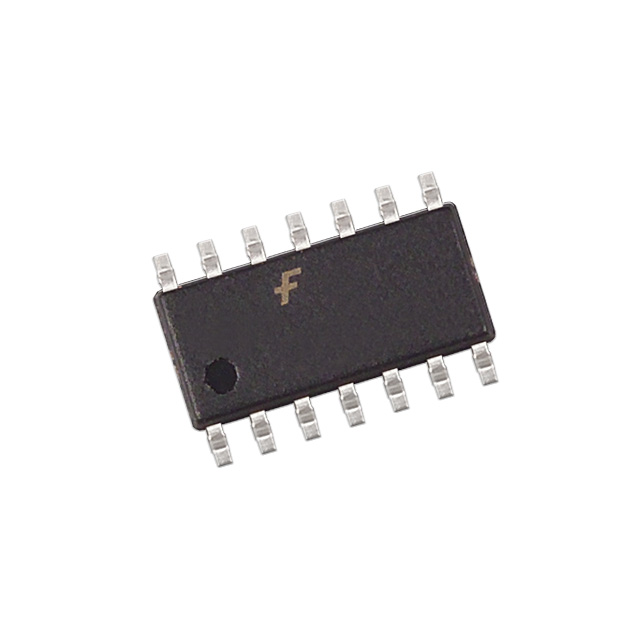

74F38SJX

74F38SJX



Производитель:

Fairchild Semiconductor
Описание:
 IC GATE NAND QUAD 2INPUT 14SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 98/P2

Datasheet (Техническое описание) 74F38SJX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74F38SJX
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic TypeNAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low18mA, 64mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature0°C ~ 70°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74F38SJX
74F38SJX
