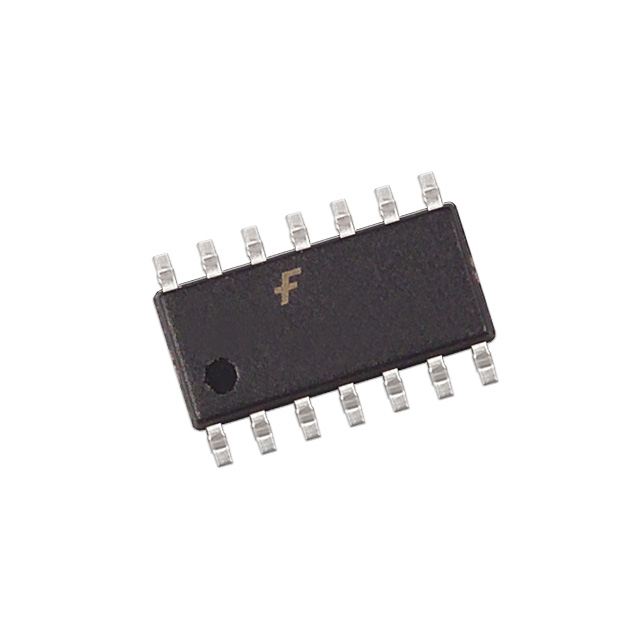

74F86SJ

74F86SJ



Производитель:

Fairchild Semiconductor
Описание:
 IC GATE EXCL-OR 2INPUT 14SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 08+

Datasheet (Техническое описание) 74F86SJ

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74F86SJ
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / Case14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic TypeXOR (Exclusive OR)
PackagingTube
Mounting TypeSurface Mount
Number of Inputs4
Current - Output High, Low1mA, 20mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature0°C ~ 70°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74F86SJ
74F86SJ
