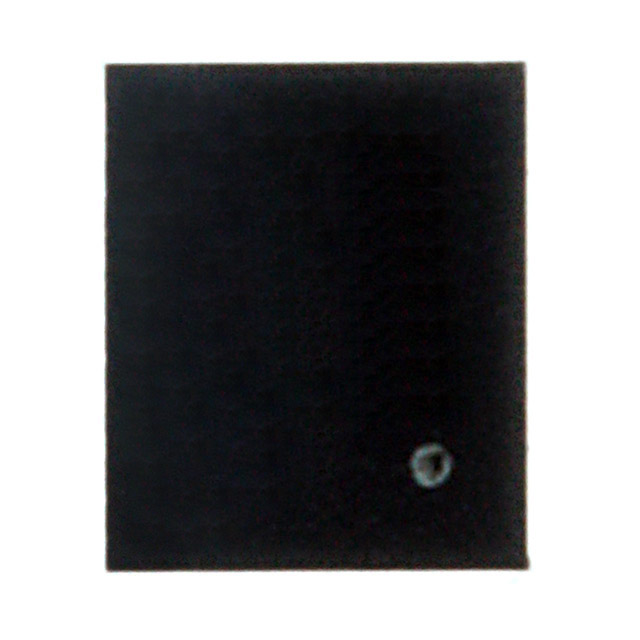

74HC04BQ,115

74HC04BQ,115



Производитель:

NXP Semiconductors (VA)
Описание:
 IC HEX INVERTER 14-DHVQFN
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74HC04BQ,115

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74HC04BQ,115
VendorNXP Semiconductors (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits6 - Hex
Package / Case14-DHVQFN
Logic TypeInverter
PackagingDigi-Reel?
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low5.2mA, 5.2mA
Supply Voltage2 V ~ 6 V
Operating Temperature-40°C ~ 125°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74HC04BQ,115
74HC04BQ,115
568 2592 6 ND
56825926ND
568-2592-6
