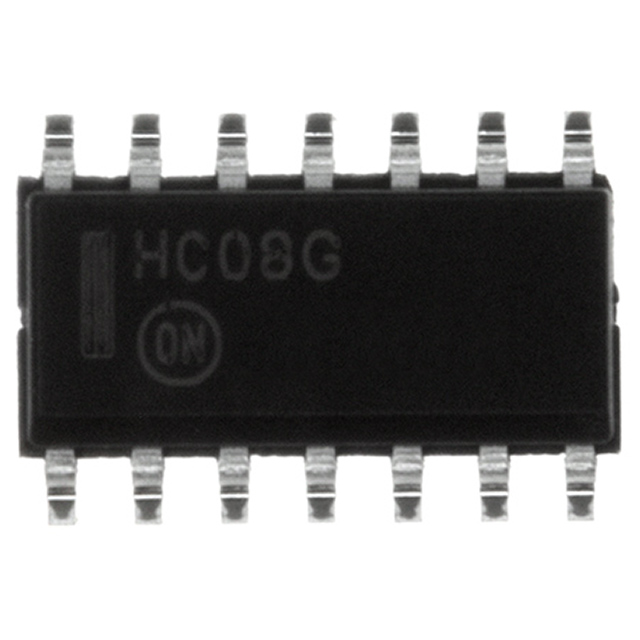

74HC08DR2G

74HC08DR2G



Производитель:

ON Semiconductor
Описание:
 IC GATE AND QUAD 2INPUT 14-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74HC08DR2G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74HC08DR2G
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low5.2mA, 5.2mA
Supply Voltage2 V ~ 6 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74HC08DR2G
74HC08DR2G
74HC08DR2GOSTR ND
74HC08DR2GOSTRND
74HC08DR2GOSTR
