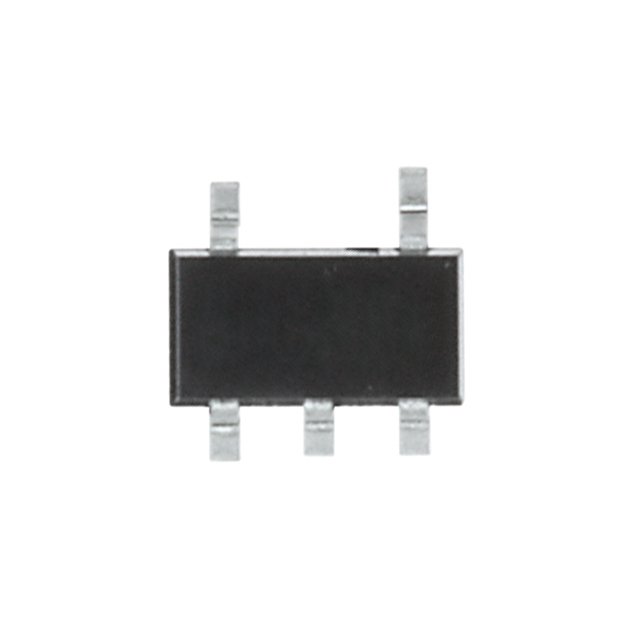

74HC1G00GV,125

74HC1G00GV,125



Производитель:

NXP Semiconductors (VA)
Описание:
 IC 2-INPUT NAND GATE SC-74A
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74HC1G00GV,125

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74HC1G00GV,125
VendorNXP Semiconductors (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / CaseSC-74-5, SOT-753
Logic TypeNAND Gate
PackagingDigi-Reel?
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low2.6mA, 2.6mA
Supply Voltage2 V ~ 6 V
Operating Temperature-40°C ~ 125°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74HC1G00GV,125
74HC1G00GV,125
568 4559 6 ND
56845596ND
568-4559-6
