CPE-163

Производитель:

CUI Inc

Купить

форма запроса

Описание:

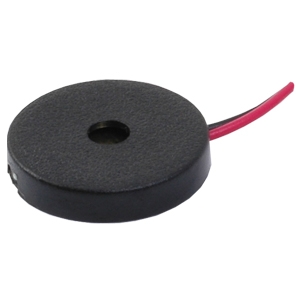

BUZZER PIEZO 30V 4.8KHZ W/WIRES

Категория:

Audio Products

Корпус:

Год:

Technical/Catalog Information	CPE-163
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Transducer, External Drive
Sound Pressure Level	80dB
Mounting Type	Requires Holder
Capacitance @ Frequency	14000pF @ 1kHz
Frequency	4.8kHz
Packaging	Bulk
Operating Mode	-
Voltage Range	30Vp-p (max)
Voltage - Rated	10Vp-p
Current Rating	10mA
Size / Dimension	Circular - 13mm Dia x 2.5mm H
Termination	Wire Leads
Capacitance	*
Adjustment Type	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CPE 163 CPE163 102 1616 ND 1021616ND 102-1616
