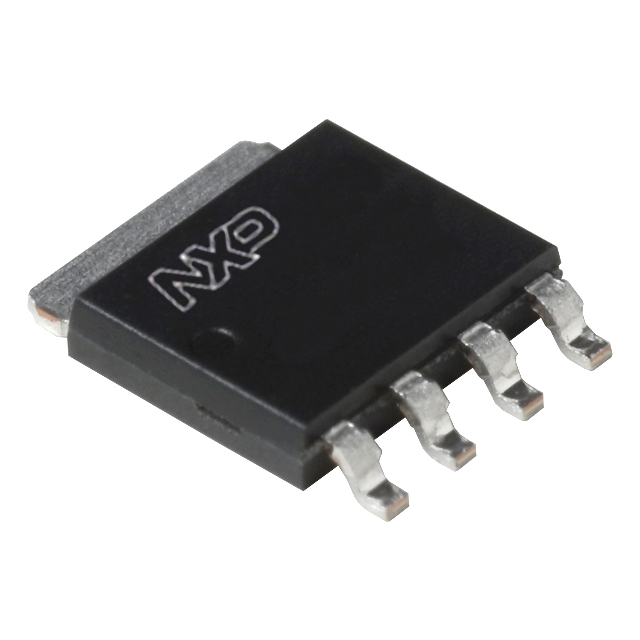

PH2520U,115

PH2520U,115



Производитель:

NXP Semiconductors (VA)
Описание:
 MOSFET N-CH 20V 100A LFPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) PH2520U,115

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPH2520U,115
VendorNXP Semiconductors (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C100A
Rds On (Max) @ Id, Vgs2.7 mOhm @ 25A, 4.5V
Input Capacitance (Ciss) @ Vds 5850pF @ 10V
Power - Max62.5W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs78nC @ 4.5V
Package / CaseLFPak-4
FET FeatureStandard
Drawing Number568; SOT669; ; 4
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PH2520U,115
PH2520U,115
568 2176 6 ND
56821766ND
568-2176-6
