Datasheet (Техническое описание) SN74ACT04PWG4
Поиск в бесплатном архиве даташитов datasheet.su
Посмотреть все характеристики
| Technical/Catalog Information | SN74ACT04PWG4 | | Vendor | Texas Instruments | | Category | Integrated Circuits (ICs) | | Number of Circuits | 6 - Hex | | Package / Case | 14-TSSOP | | Logic Type | Inverter | | Packaging | Tube | | Mounting Type | Surface Mount | | Number of Inputs | 1 | | Current - Output High, Low | 24mA, 24mA | | Supply Voltage | 4.5 V ~ 5.5 V | | Operating Temperature | -40°C ~ 85°C | | Voltage - Supply | 4.5 V ~ 5.5 V | | Drawing Number | 296; 4040064; PW; 8, 14, 16, 20, 24, 28 | | Lead Free Status | Lead Free | | RoHS Status | RoHS Compliant | | Other Names | SN74ACT04PWG4

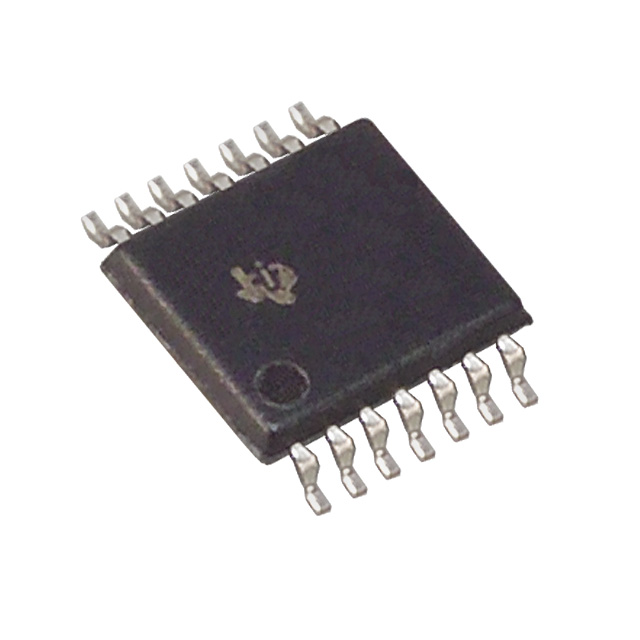

SN74ACT04PWG4
|
|
