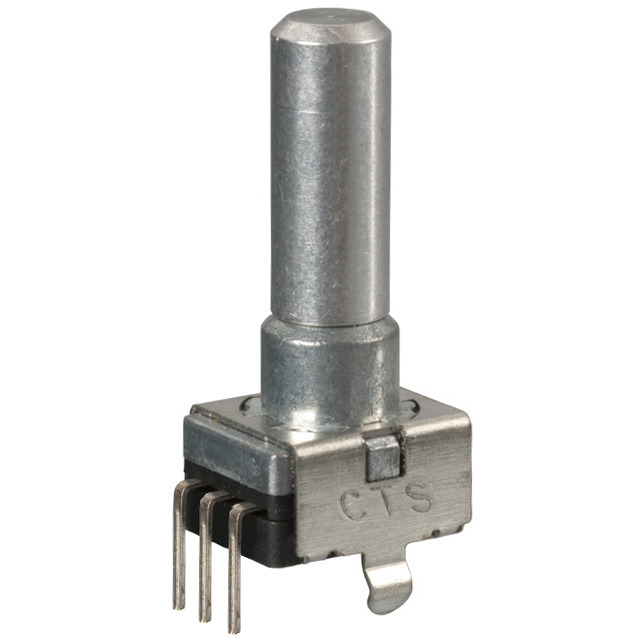

290VAB0R201A2

Производитель:

CTS Corporation Resistor/Electrocomponents

Купить

форма запроса

Описание:

ENCODER 2 BIT QUAD W/DETENTS

Категория:

Switches

Корпус:

Год:

Technical/Catalog Information	290VAB0R201A2
Vendor	CTS Corporation Resistor/Electrocomponents
Category	Switches
Encoder Type	Mechanical
Output Type	Quadrature (Incremental)
Pulses per Revolution	20
Actuator Type	6mm Dia Round End
Voltage - Supply	-
Built in Switch	No
Detent	Yes
Mounting Type	PCB, Through Hole
Termination Style	PC Pin
Orientation	Vertical
Rotational Life (Cycles Min)	50K
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	290VAB0R201A2 290VAB0R201A2 CT3005 ND CT3005ND CT3005
