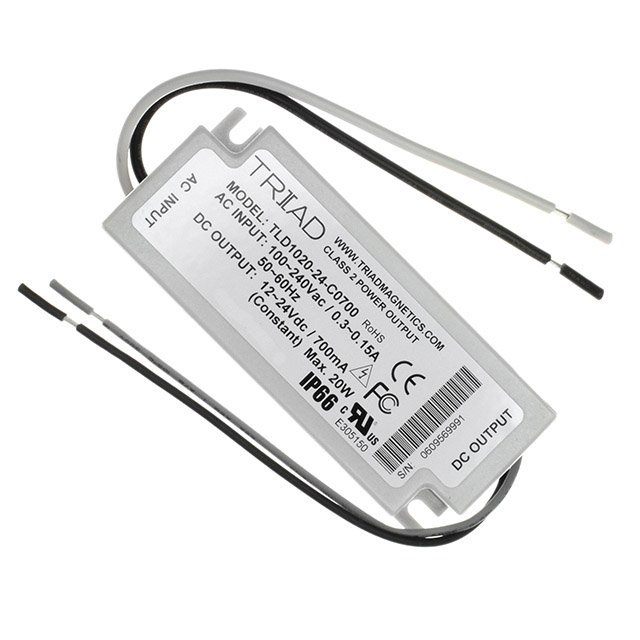

TLD1020-24-C0700

TLD1020-24-C0700



Производитель:

Triad Magnetics
Описание:
 POWER SUPPLY 20W 12-24VDC .700A
Категория:
 Power Supplies
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) TLD1020-24-C0700

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTLD1020-24-C0700
VendorTriad Magnetics
CategoryPower Supplies
Voltage - Input90 ~ 264VAC
Voltage - Output12 ~ 24V
Current - Output700mA
Termination StyleWire Leads
Size / Dimension3.74" L x 1.57" W x 0.98" H (95mm x 40mm x 25mm)
Power (Watts)20W
Mounting TypePanel Mount
Approvals*
Operating Temperature-30°C ~ 60°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TLD1020 24 C0700
TLD102024C0700
237 1311 ND
2371311ND
237-1311
