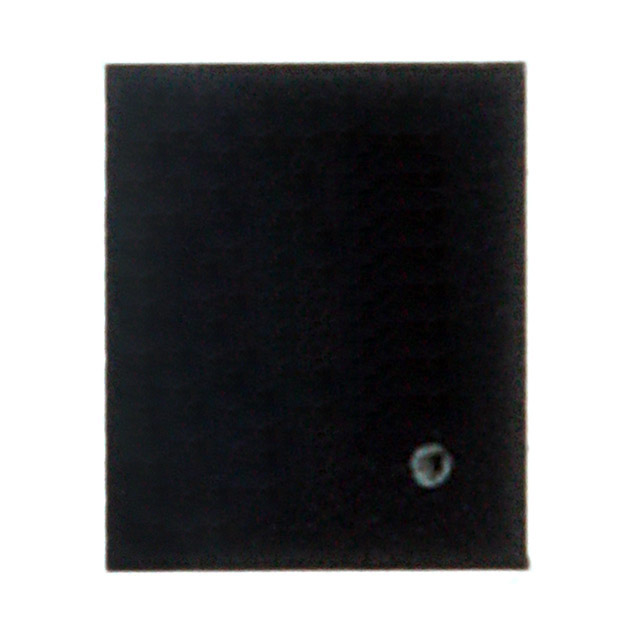

74HCT74BQ,115

74HCT74BQ,115



Производитель:

NXP Semiconductors (VA)
Описание:
 IC DUAL D F-F POS-EDGE 14-DHVQFN
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74HCT74BQ,115

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74HCT74BQ,115
VendorNXP Semiconductors (VA)
CategoryIntegrated Circuits (ICs)
Mounting TypeSurface Mount
Package / Case14-DHVQFN
FunctionSet and Reset
Number of Bits per Element1
Number of Elements2 - Dual
Current - Output High, Low4mA, 4mA
Output TypeDifferential
Trigger TypePositive Edge
TypeD-Type
PackagingCut Tape (CT)
Operating Temperature-40°C ~ 125°C
Delay Time - Propagation18ns
Frequency - Clock22MHz
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number568; SOT762; ;
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74HCT74BQ,115
74HCT74BQ,115
568 2905 1 ND
56829051ND
568-2905-1
