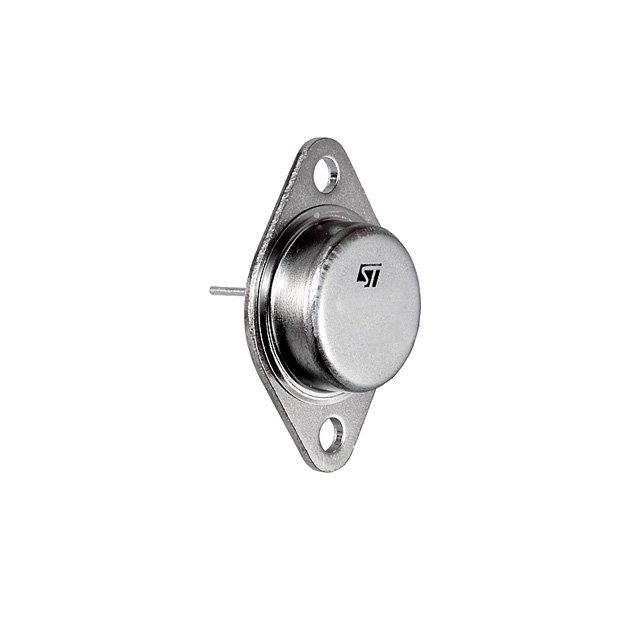

2N3055

2N3055



Производитель:

STMicroelectronics
Описание:
 TRANSISTOR NPN 60V 15A TO-3
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 06+

Datasheet (Техническое описание) 2N3055

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2N3055
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)60V
Current - Collector (Ic) (Max)15A
Power - Max115W
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 4A, 4V
Vce Saturation (Max) @ Ib, Ic3V @ 3.3A, 10A
Frequency - Transition-
Current - Collector Cutoff (Max)700??A
Mounting TypeChassis Mount
Package / CaseTO-204, TO-3
PackagingTray
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N3055
2N3055
497 2612 5 ND
49726125ND
497-2612-5
