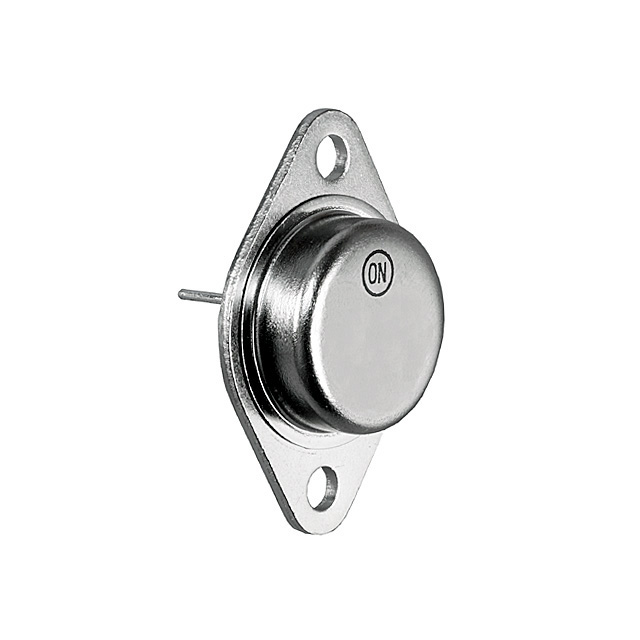

2N3055A

2N3055A



Производитель:

ON Semiconductor
Описание:
 TRANSISTOR NPN 60V 15A BIPO TO-3
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 06+

Datasheet (Техническое описание) 2N3055A

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2N3055A
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)60V
Current - Collector (Ic) (Max)15A
Power - Max115W
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 4A, 4V
Vce Saturation (Max) @ Ib, Ic1.1V @ 400mA, 4A
Frequency - Transition6MHz
Current - Collector Cutoff (Max)700??A
Mounting TypeChassis Mount
Package / CaseTO-204, TO-3
PackagingTray
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 2N3055A
2N3055A
