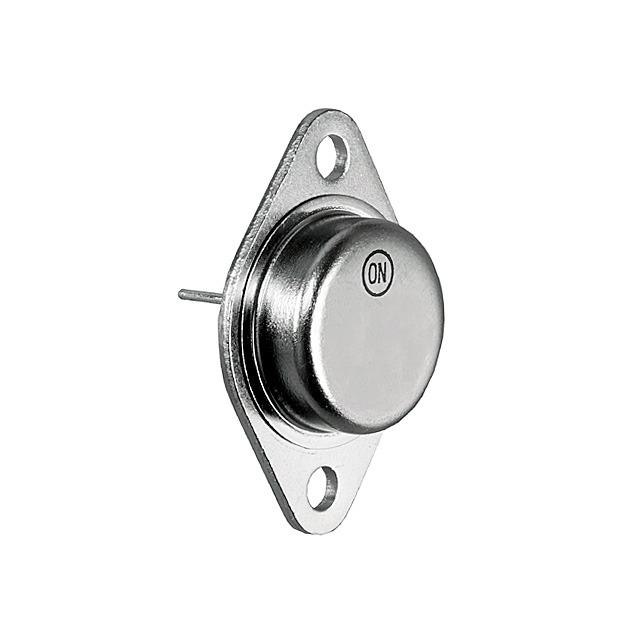

2N5302G

2N5302G



Производитель:

ON Semiconductor
Описание:
 TRANS NPN PWR GP 30A 60V TO3
Категория:
 Discrete Semiconductor Products
Корпус:
 CAN
Год:
 04+

Datasheet (Техническое описание) 2N5302G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2N5302G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)60V
Current - Collector (Ic) (Max)30A
Power - Max200W
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 15A, 2V
Vce Saturation (Max) @ Ib, Ic700mV @ 1A, 10A
Frequency - Transition2MHz
Current - Collector Cutoff (Max)5mA
Mounting TypeChassis Mount
Package / CaseTO-204, TO-3
PackagingTray
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N5302G
2N5302G
2N5302GOS ND
2N5302GOSND
2N5302GOS
