| Technical/Catalog Information | 2N5639 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 25mA @ 20V |
| Gate to Source Voltage (Vgs Max) | * |
| Input Capacitance (Ciss) @ Vds | 10pF @ 12V (VGS) |
| Power - Max | 310mW |
| Packaging | Bulk |

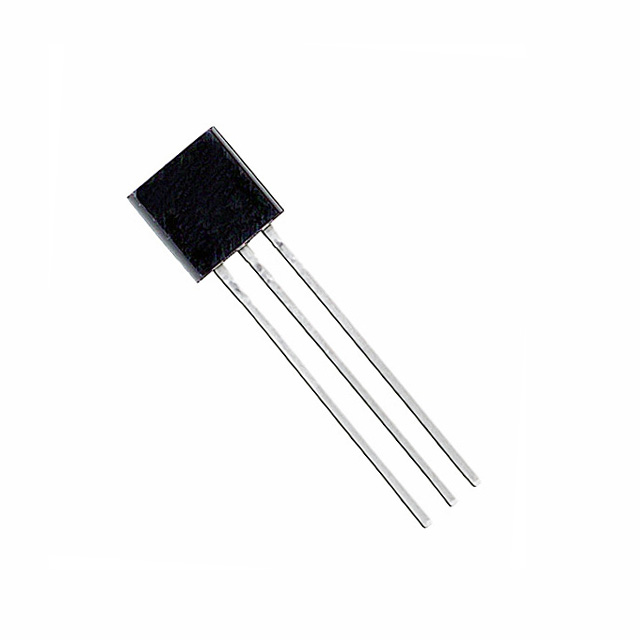

| Package / Case | TO-92-3, TO-226AA (Straight Leads) |
| Voltage - Cutoff (VGS off) @ Id | - |
| Voltage - Breakdown (V(BR)GSS) | 35V |
| Resistance - RDS(On) | 60 Ohm |
| Current Drain (Id) - Max | - |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | 2N5639
2N5639
2N5639OS ND
2N5639OSND
2N5639OS
|
