| Technical/Catalog Information | 2N5060 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| SCR Type | Sensitive Gate |
| Voltage - Off State | 30V |
| Current - On State (It (RMS) (Max) | 800mA |
| Current - On State (It (AV)) (Max) | 510mA |
| Current - Gate Trigger (Igt) (Max) | 200??A |
| Current - Hold (Ih) (Max) | 5mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 800mV |
| Mounting Type | Through Hole |

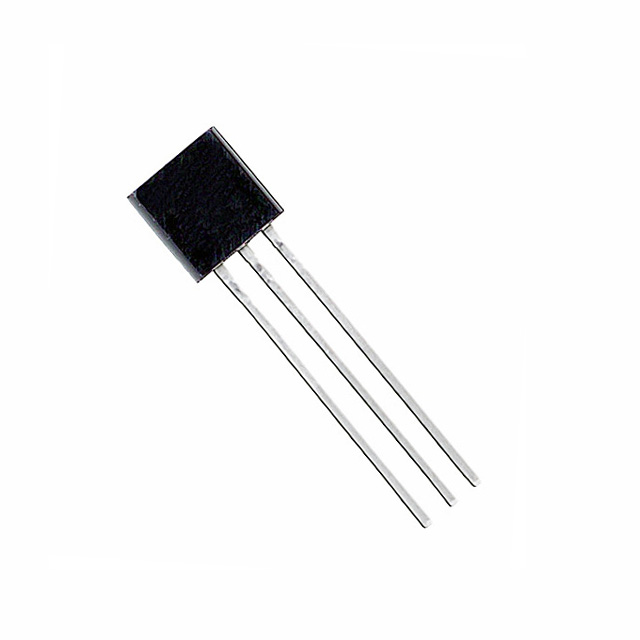

| Package / Case | TO-92-3, TO-226AA (Straight Leads) |
| Packaging | Bulk |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | 2N5060
2N5060
2N5060OS ND
2N5060OSND
2N5060OS
|
