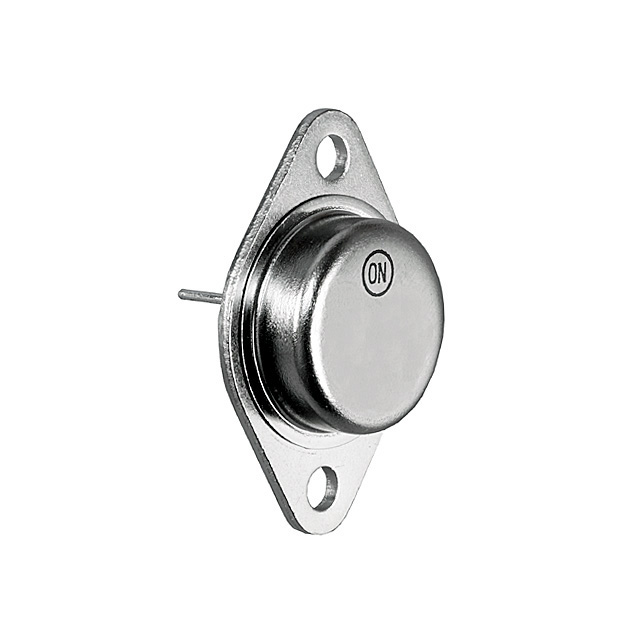

2N5686G

2N5686G



Производитель:

ON Semiconductor
Описание:
 TRANS NPN PWR GP 50A 80V TO3
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 ON

Datasheet (Техническое описание) 2N5686G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2N5686G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)50A
Power - Max300mW
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 25A, 2V
Vce Saturation (Max) @ Ib, Ic1V @ 2.5A, 25A
Frequency - Transition2MHz
Current - Collector Cutoff (Max)1mA
Mounting TypeChassis Mount
Package / CaseTO-204, TO-3
PackagingTray
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N5686G
2N5686G
2N5686GOS ND
2N5686GOSND
2N5686GOS
