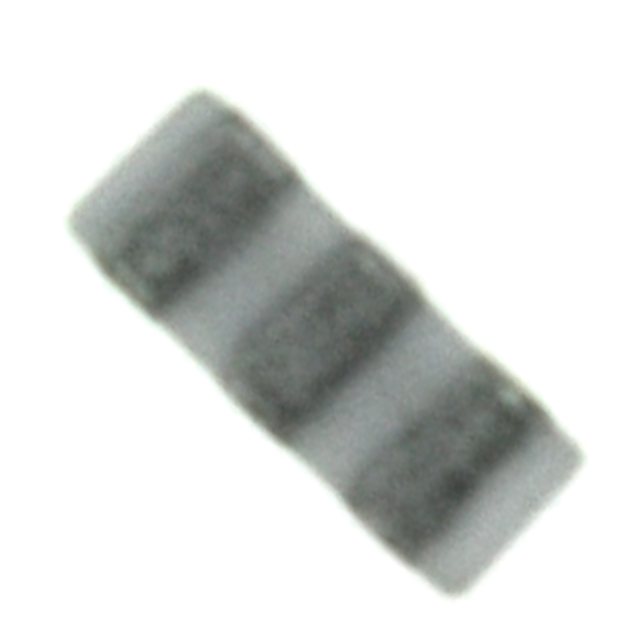

0869CP14B1050T

0869CP14B1050T



Производитель:

Johanson Technology Inc (VA)
Описание:
 DIR COUPLER DB SP 869MHZ
Категория:
 RF and RFID
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 0869CP14B1050T

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information0869CP14B1050T
VendorJohanson Technology Inc (VA)
CategoryRF and RFID
Frequency824MHz~915MHz, 999MHz~1.102GHz
Insertion Loss0.4dB, 0.6dB
Coupling Factor14.2 ± 1dB, 12.7 ± 1dB
Package / Case0603 (1608 metric)
PackagingDigi-Reel?
Applications-
Power - Max3W
Coupler TypeDual Band, Single Path
Isolation23dB, 22dB
Return Loss-
Lead Free StatusLead Free Compliant by Exemption
RoHS StatusRoHS Compliant
Other Names 0869CP14B1050T
0869CP14B1050T
712 1148 6 ND
71211486ND
712-1148-6
