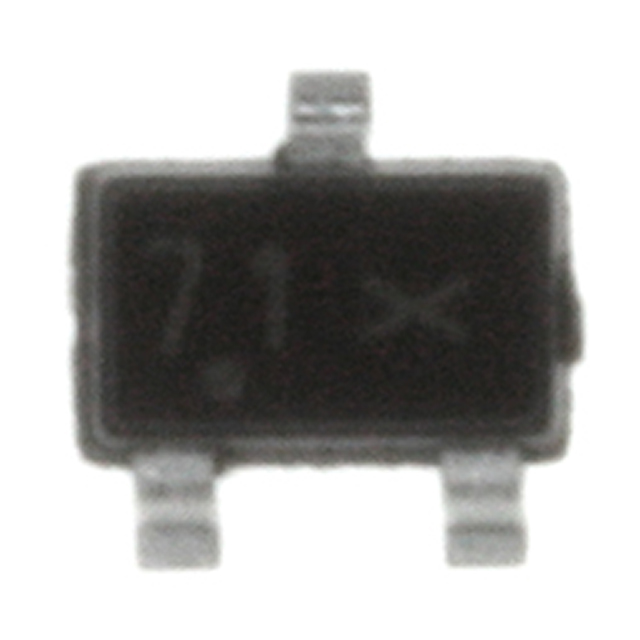

2N7002WT1G

2N7002WT1G



Производитель:

ON Semiconductor (VA)
Описание:
 MOSFET N-CH SGL 60V 340MA SOT323
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2N7002WT1G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2N7002WT1G
VendorON Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C310mA
Rds On (Max) @ Id, Vgs1.6 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds 24.5pF @ 20V
Power - Max280mW
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs0.7nC @ 4.5V
Package / CaseSC-70-3, SOT-323-3
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N7002WT1G
2N7002WT1G
2N7002WT1GOSDKR ND
2N7002WT1GOSDKRND
2N7002WT1GOSDKR
