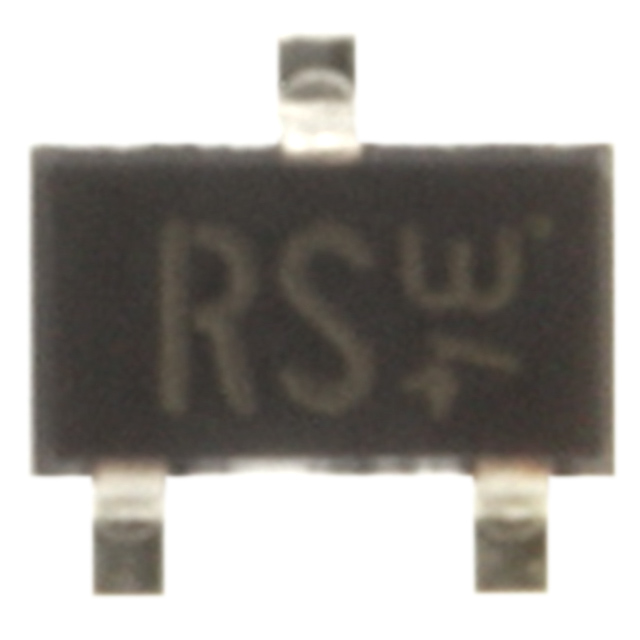

2SA1514KT146S

2SA1514KT146S



Производитель:

Rohm Semiconductor(VA)
Описание:
 TRANSISTOR PNP 120V 50MA SOT-346
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SA1514KT146S

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SA1514KT146S
VendorRohm Semiconductor(VA)
CategoryDiscrete Semiconductor Products
Transistor TypePNP
Voltage - Collector Emitter Breakdown (Max)120V
Current - Collector (Ic) (Max)50mA
Power - Max200mW
DC Current Gain (hFE) (Min) @ Ic, Vce270 @ 2mA, 6V
Vce Saturation (Max) @ Ib, Ic500mV @ 1mA, 10mA
Frequency - Transition140MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-59-3, SMT3, SOT-346, TO-236
PackagingDigi-Reel?
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SA1514KT146S
2SA1514KT146S
2SA1514KT146SDKR ND
2SA1514KT146SDKRND
2SA1514KT146SDKR
