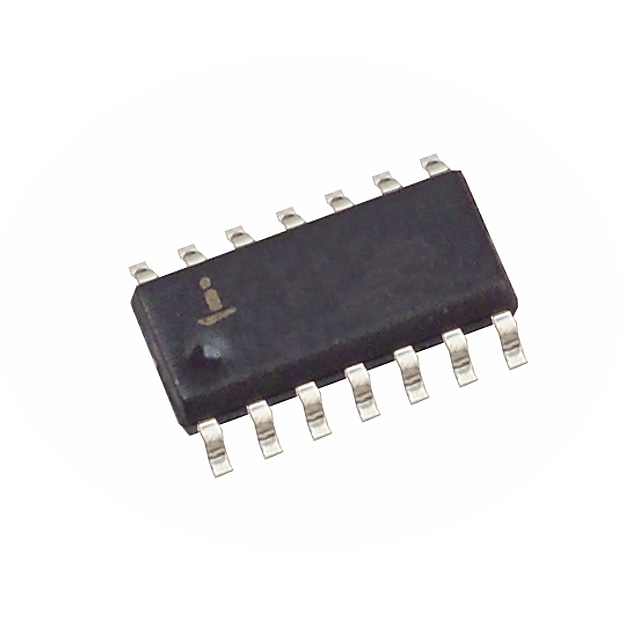

EL5420CSZ

EL5420CSZ



Производитель:

Intersil
Описание:
 IC OPAMP QUAD R-R 12MHZ 14-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 N/A
Год:
 09+

Datasheet (Техническое описание) EL5420CSZ

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEL5420CSZ
VendorIntersil
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypeVoltage Feedback
Number of Circuits4 - Quad
Package / Case14-SOIC (3.9mm Width), 14-SOL
Slew Rate10 V/??s
Gain Bandwidth Product8MHz
Current - Supply500??A
Current - Output / Channel30mA
Voltage - Supply, Single/Dual (±)4.5 V ~ 16.5 V, ±2.25 V ~ 8.25 V
Output TypeRail-to-Rail
-3db Bandwidth12MHz
Current - Input Bias2nA
Operating Temperature-40°C ~ 85°C
Voltage - Input Offset2000??V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EL5420CSZ
EL5420CSZ
