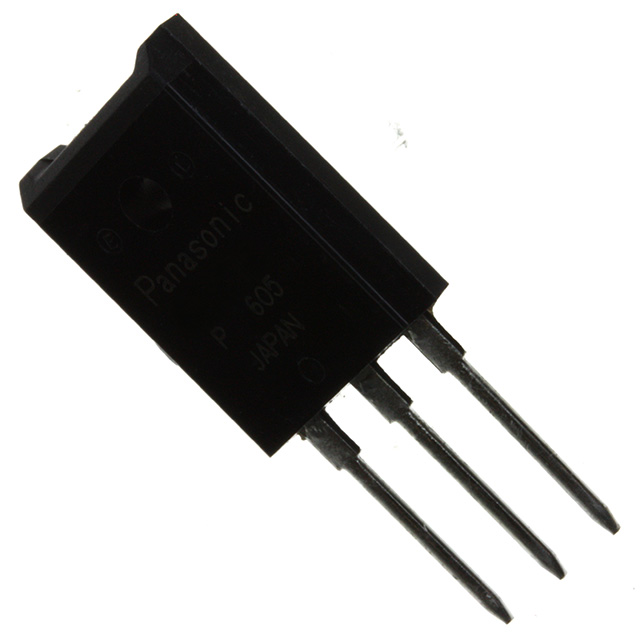

2SB11560P

2SB11560P



Производитель:

Panasonic - SSG
Описание:
 TRANS PNP 80VCEO 20A TOP-3F
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SB11560P

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SB11560P
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypePNP
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)20A
Power - Max100W
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 3A, 2V
Vce Saturation (Max) @ Ib, Ic500mV @ 400mA, 8A
Frequency - Transition30MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTOP-3F
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SB11560P
2SB11560P
