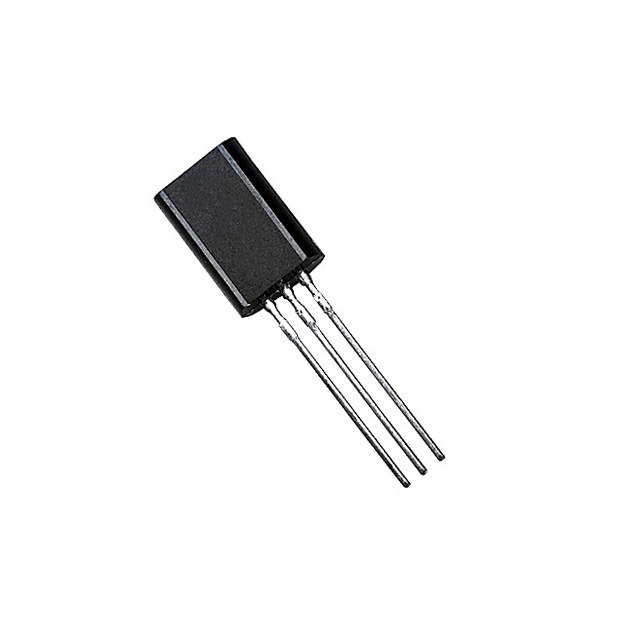

2SC13840R

2SC13840R



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN 50VCEO 1A TO-92L
Категория:
 Discrete Semiconductor Products
Корпус:
 TO92
Год:
 07+/08+

Datasheet (Техническое описание) 2SC13840R

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC13840R
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)1A
Power - Max1W
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 500mA, 10V
Vce Saturation (Max) @ Ib, Ic400mV @ 50mA, 500mA
Frequency - Transition200MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-92L
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC13840R
2SC13840R
